How to Build a Repeatable Scanning Workflow

One of the biggest differences between early ultrasound users and advanced clinicians isn’t anatomy knowledge.

It’s structure.

Beginners scan reactively.

Experienced clinicians scan systematically.

A repeatable scanning workflow reduces missed findings, minimizes bias, and improves clinical reliability. At RMSK level, ultrasound should not depend on memory or improvisation. It should follow a structured sequence.

Start With Clinical Intent - Not the Probe

Before gel touches skin, define the clinical question.

What mechanism occurred?

What load reproduces symptoms?

Is this acute, chronic, recurrent?

What structure is most biomechanically plausible?

Ultrasound should answer a question not create one.

Without defined intent, scanning becomes exploratory and inefficient.

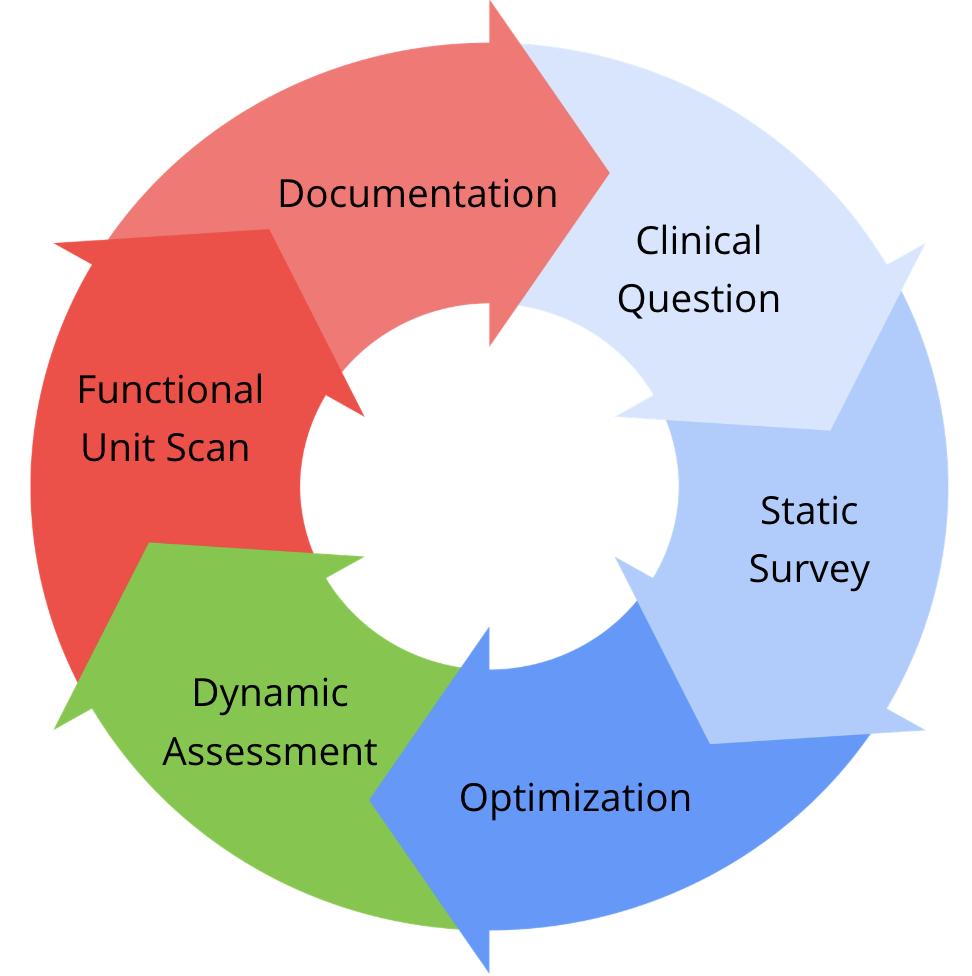

Repeatable RMSK-Level Musculoskeletal Ultrasound Workflow

Standardize Your Planes First

Every region should have a predictable sequence.

For example:

• Long axis first

• Short axis second

• Compare contralateral side

• Evaluate insertion → mid-substance → proximal attachment

The order matters less than the consistency.

A structured plane sequence prevents:

• skipping attachment sites

• ignoring deeper layers

• chasing incidental findings

Consistency builds reliability.

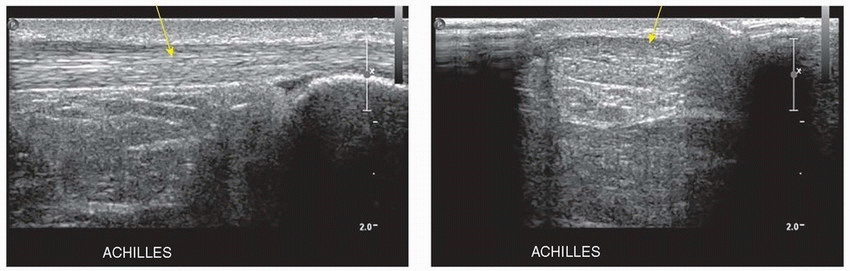

Achilles Tendon Ultrasound: Long-Axis and Short-Axis Views

Optimize Before You Interpret

At RMSK level, interpretation does not begin until optimization is complete.

Adjust:

• Depth to include entire structure

• Focus to the level of interest

• Gain to preserve fascial contrast

• Probe angle to eliminate anisotropy

Many “pathologies” disappear with proper beam alignment.

If optimization changes the finding, it was never pathology.

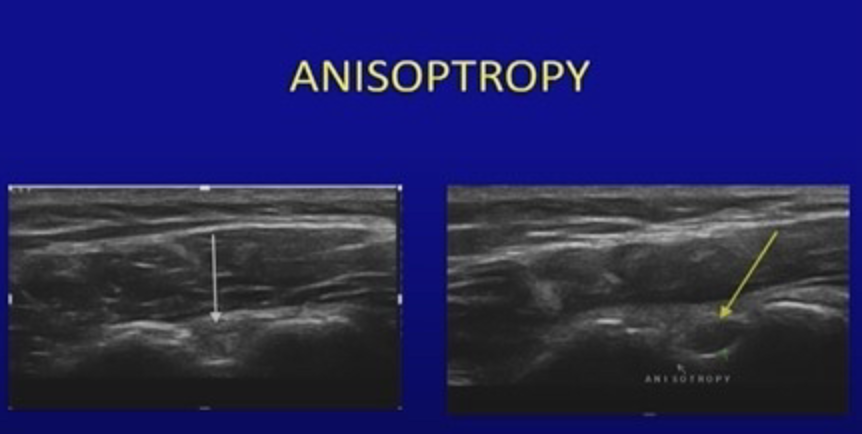

Biceps Tendon Anisotropy on Ultrasound

Incorporate Dynamic Assessment Intentionally

Static imaging is incomplete.

Each workflow should include:

• Active contraction

• Passive stretch

• Load reproduction if appropriate

• Side-to-side comparison

Dynamic scanning reveals:

• subtle fiber gapping

• delayed recruitment

• load-dependent asymmetry

This is especially critical in sports populations.

If your workflow does not include dynamic testing, it is incomplete.

https://video.wixstatic.com/video/17b594_e6db2142daf54b7ba5f211b61dac0da1/1080p/mp4/file.mp4

Dynamic Ultrasound Assessment of the Gastric Soleus Complex During Calf Raise

Scan the Entire Functional Unit

Musculoskeletal injuries rarely exist in isolation.

A repeatable workflow considers:

• proximal attachment

• myotendinous junction

• intramuscular tendon

• distal insertion

• surrounding fascial interfaces

Stopping at the site of tenderness often misses the true driver.

Systematic scanning reduces tunnel vision.

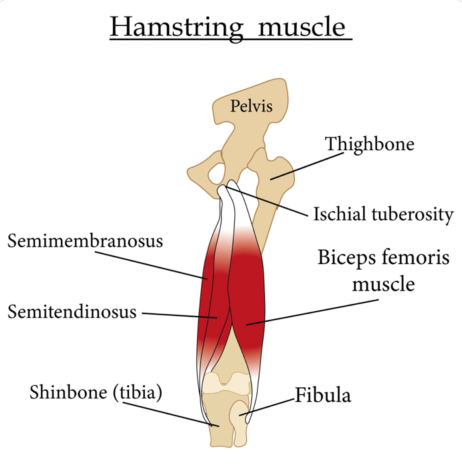

Hamstring Muscle Anatomy Overview

Document With Structure

Image capture should also follow a pattern:

• Long axis overview

• Short axis overview

• Focused pathology image

• Dynamic capture if relevant

Documentation consistency protects both clinical reasoning and professional accountability.

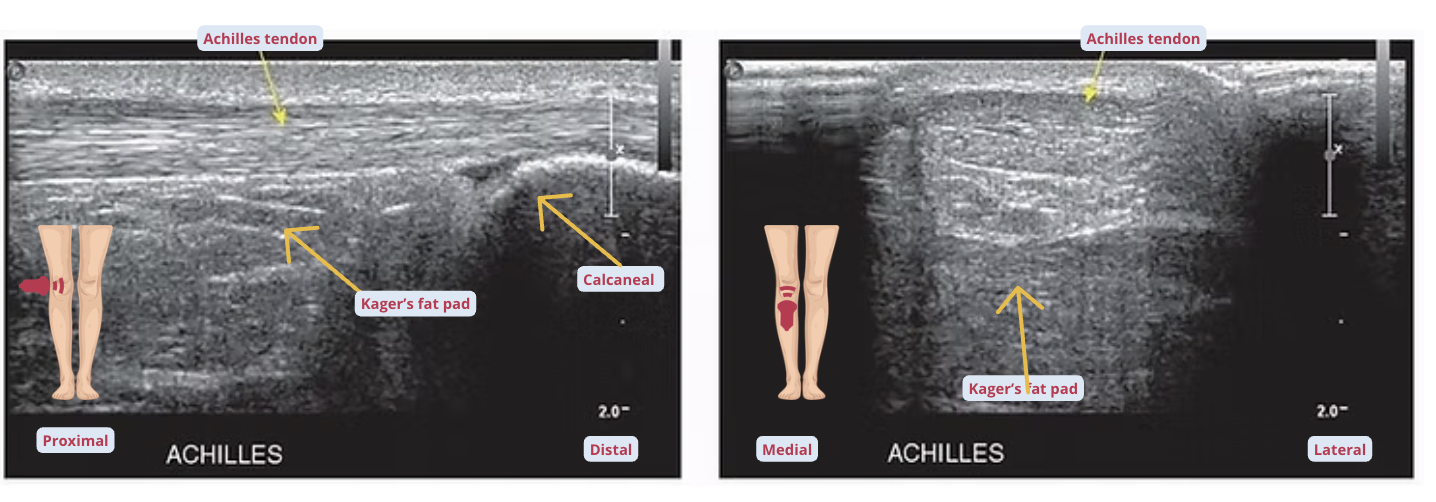

Achilles Tendon Ultrasound: Long-Axis and Short-Axis Evaluation

Why This Matters

A structured workflow reduces:

• confirmation bias

• missed attachment pathology

• overcalling incidental findings

• inconsistent documentation

More importantly, it builds confidence rooted in process — not in guesswork.

RMSK-level scanning is not about finding more pathology.

It is about scanning in a way that makes pathology difficult to miss.

---

If you’re developing your MSK ultrasound skillset, consider whether your scanning approach is structured or reactive.

Mastery begins with process.
