When Dynamic Ultrasound Reveals Normal Muscle Behavior
- Carlos Jimenez
- Mar 11
- 4 min read
Observing the Rectus Femoris During a Reverse Nordic Exercise
Musculoskeletal ultrasound is often used to identify structural abnormalities such as muscle tears, tendon pathology, or fluid collections. However, ultrasound can also be used as a powerful educational tool to observe normal tissue mechanics during movement. Dynamic assessment allows clinicians to visualize how muscles and tendons behave under load, offering insights into the functional architecture of musculoskeletal tissue. One interesting example can be seen when observing the rectus femoris during a Reverse Nordic exercise.
Why the Rectus Femoris Is Unique

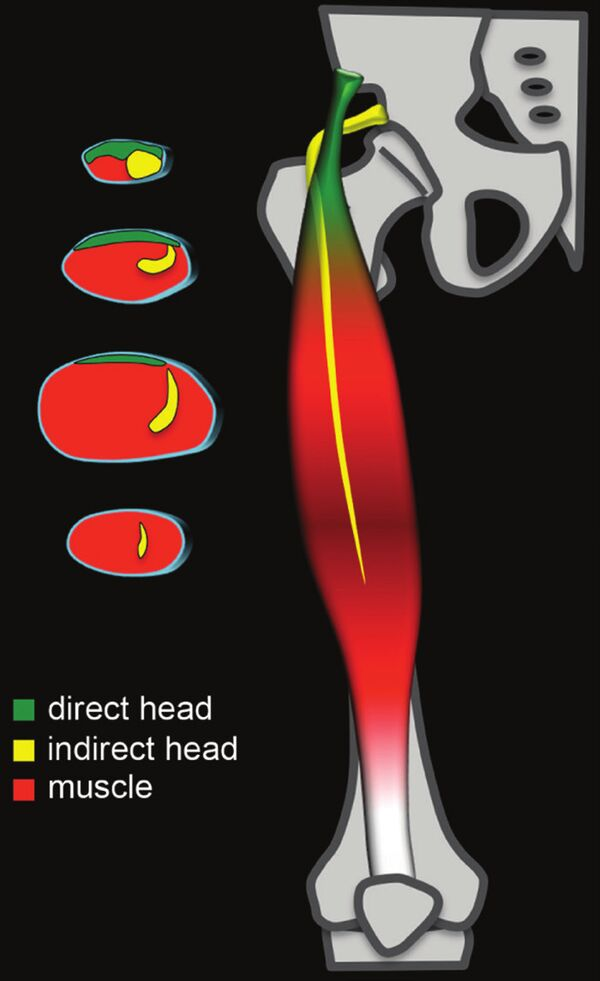

The rectus femoris differs from the other quadriceps muscles because it is biarticular, crossing both the hip and the knee.
This anatomical feature exposes the muscle to complex loading patterns, particularly during:
sprinting
kicking
rapid deceleration
eccentric quadriceps loading
In many athletes, injury or dysfunction occurs around the central tendon of the rectus femoris, where fascicles attach along the internal aponeurosis. These injuries may not always be obvious in a static ultrasound image.
Dynamic Ultrasound During the Reverse Nordic Exercise
The Reverse Nordic is an eccentric quadriceps exercise performed from a kneeling position. During the movement, the athlete gradually leans backward while maintaining hip extension, producing controlled eccentric loading of the quadriceps. When ultrasound imaging is performed during this movement, clinicians can observe the behavior of the rectus femoris muscle fibers relative to the central tendon.
In the observational video accompanying this article, a healthy individual performed the Reverse Nordic while the ultrasound probe remained stabilized over the rectus femoris.
Using Probe Stabilization for Dynamic Imaging
Capturing meaningful dynamic ultrasound images during movement can be challenging.
Small shifts in probe position may make interpretation difficult.
Using a stabilization device such as the ProbeFix allows the probe to remain consistently positioned while the athlete performs movement.
This stability helps clinicians observe subtle changes in tissue behavior during contraction and elongation.
Maintaining probe alignment is particularly important when evaluating the rectus femoris central tendon, where small architectural changes may become more visible during eccentric loading.
What Dynamic Imaging Can Reveal
During the Reverse Nordic movement, clinicians may observe:
fascicle lengthening patterns
interaction between muscle fibers and central tendon
asymmetry between sides
restricted motion of the central tendon relative to surrounding muscle
These findings may not always be evident during static imaging alone.
Dynamic ultrasound therefore provides an additional perspective on how tissues behave under load, which may be relevant during rehabilitation progression.
What the Dynamic Scan Shows
During the eccentric phase of the Reverse Nordic movement, the surrounding muscle fascicles visibly lengthen and deform as the quadriceps are loaded.
Interestingly, the central tendon appears relatively stable and minimally deforming in comparison.
Rather than elongating with the surrounding fibers, the tendon maintains a more rigid appearance while the muscle fascicles lengthen around it.
This observation reflects the mechanical role of the central tendon as a force transmission structure within the muscle.
In other words, the tendon behaves less like contractile tissue and more like a structural anchor within the muscle architecture.
Why This Matters for Clinicians
Understanding normal tissue behavior is essential when interpreting ultrasound images.
Without familiarity with muscle architecture, a relatively stiff or minimally deforming structure might be misinterpreted as abnormal.
However, in this context the observation reflects normal functional anatomy.
Dynamic ultrasound therefore serves not only as a diagnostic tool but also as a way to deepen understanding of how musculoskeletal tissues behave under load.
For clinicians working with athletes, these insights reinforce the importance of appreciating the structural design of muscles such as the rectus femoris.
The Role of Probe Stabilization in Dynamic Imaging
Capturing dynamic ultrasound during movement can be technically challenging.
Maintaining a stable imaging window while the athlete performs an exercise is critical to ensure that the observed motion reflects true tissue movement rather than probe displacement.
Using a probe stabilization device allows the clinician to maintain consistent probe alignment while the athlete performs the movement.
This setup helps reveal subtle mechanical relationships between muscle fascicles and tendon structures during dynamic loading.
Dynamic Ultrasound as a Learning Tool
Dynamic musculoskeletal ultrasound provides clinicians with a unique opportunity to observe anatomy in motion.
Rather than viewing muscles as static structures, clinicians can appreciate how muscle architecture interacts with tendon structures during real movement.
Even in healthy individuals, these observations can improve our understanding of tissue mechanics and refine how we interpret ultrasound findings in both normal and injured athletes.
Closing Thought
Sometimes the most valuable ultrasound insights do not come from identifying pathology, but from watching normal tissue behave under load.
Dynamic imaging reminds us that musculoskeletal structures are designed to move—and ultrasound allows us to see that movement in real time.
